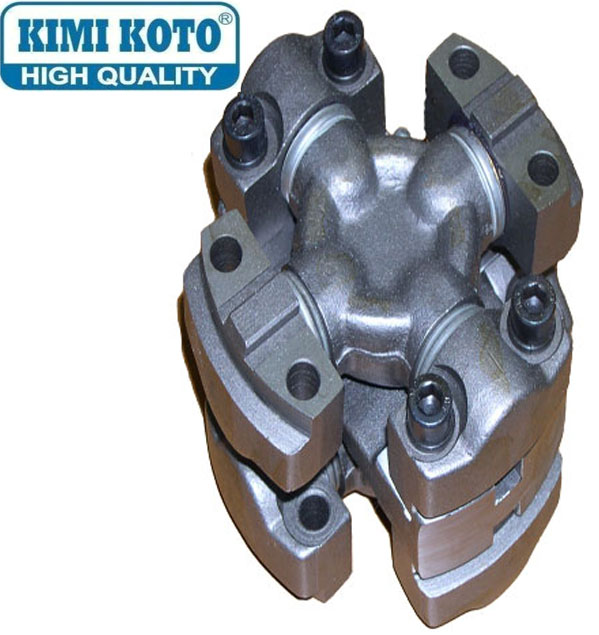

Forklift U Joints
| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | HS543-HS545 |
| Place of Origin: | Zhejiang China | Brand Name: | KIMI KOTO |
| Product Name: | Double U Joint | Sizes: | 36.5X112X108MM |
| Market: | After Market/OEM | Series: | 4C |
| Weight: | 3265g | Packing Details: | Inner packing+Outer Packing+ Wooden Boxes |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||

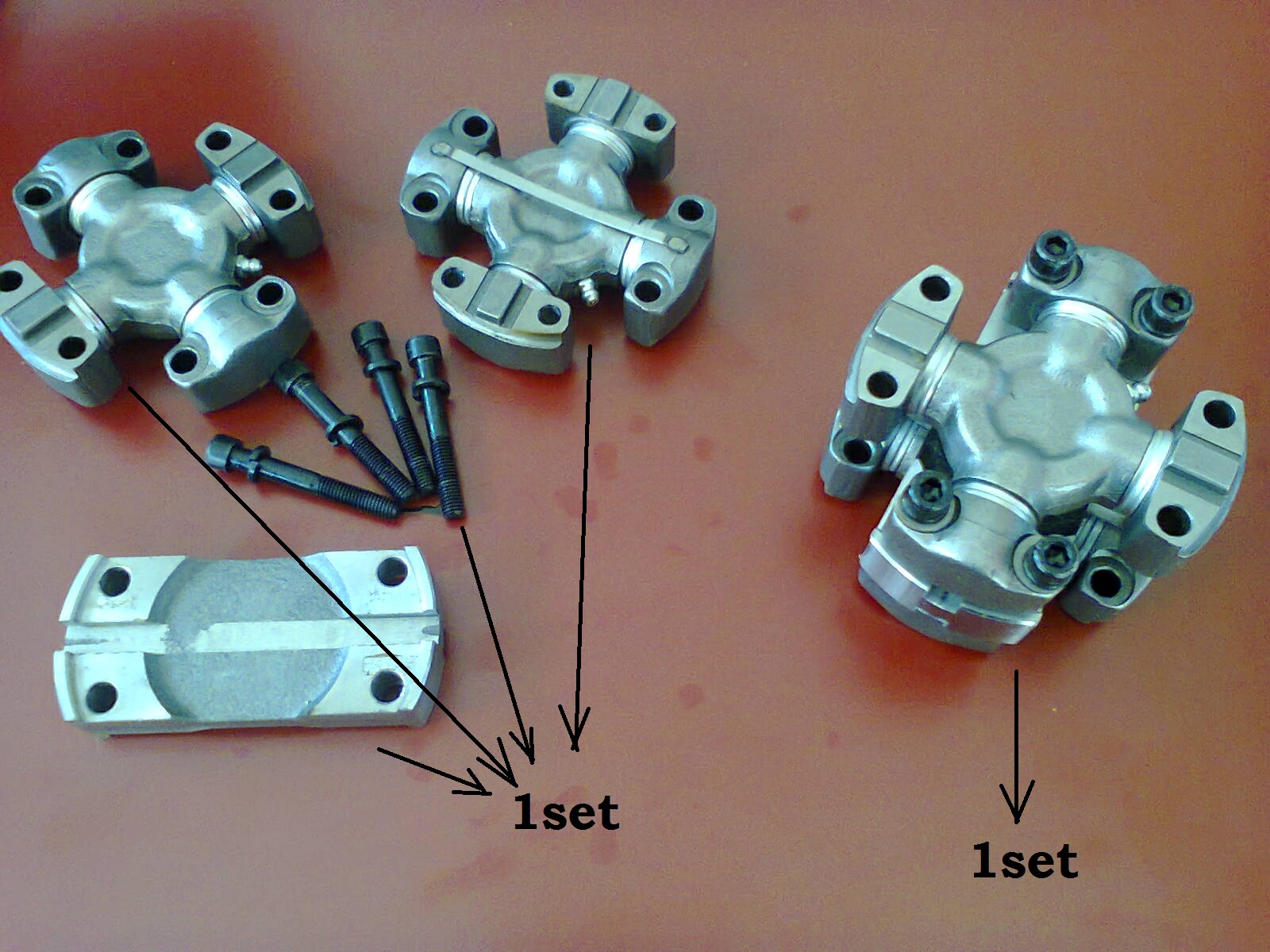

Double U Joints
|
Series |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
L (mm) |
Bearing Type |
Ref. No. |
|
2C |
33.32 |
59.5 |
9.5 |
79.35 |
74.93 |
2LWD, 2LWT/4LWD |
|
|
4C |
36.52 |
87.3 |
9.5 |
107.9 |
79 |
2HWD, 2LWT/2HWD, 2LWD |
HS543-HS545 |
|
5C |
42.88 |
88.9 |
14.26 |
115.06 |
105 |
4HWD/4HWD |
CA25 |
|
6C |
42.88 |
114.3 |
14.26 |
140.46 |
119.96 |
4HWD/4HWD |
144-15-17001 |
|
6C |
42.88 |
114.3 |
15.85 |
140.46 |
127 |
4HWD/4HWD |
|
|
7C |
49.2 |
117.46 |
15.85 |
148.38 |
119.96 |
4HWD/4HWD |
144-10-12100 |
|
8.5C |
71.4 |
123.8 |
15.85 |
165.1 |
158.8 |
4HWD/4HWD |
175-20-11000 |
|
|
50 |
180.1 |
16 |
208 |
135 |
4HWD/4HWD |
154-20-10002 |
|
9C |
71.44 |
168.3 |
15.85 |
209.52 |
198 |
4HWD/4HWD |
|
